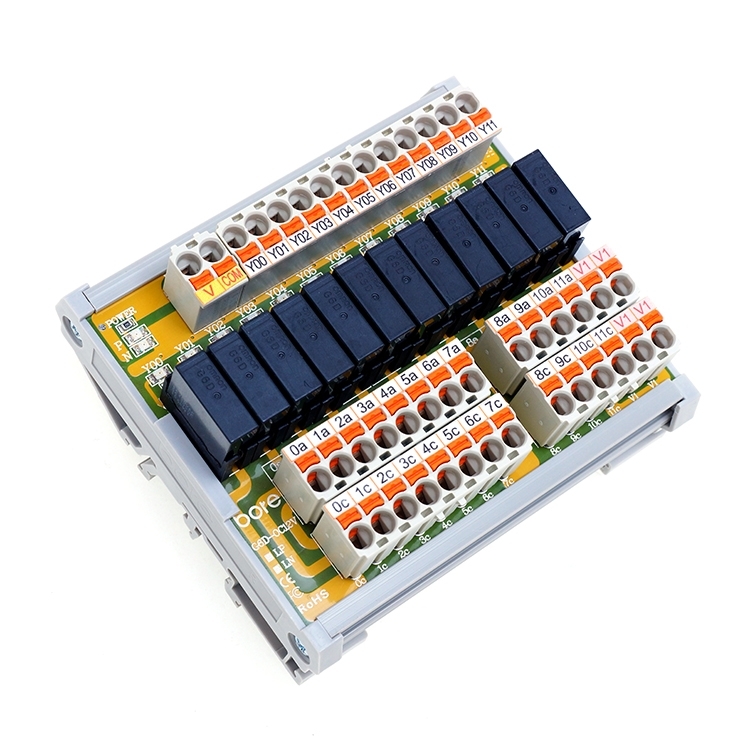

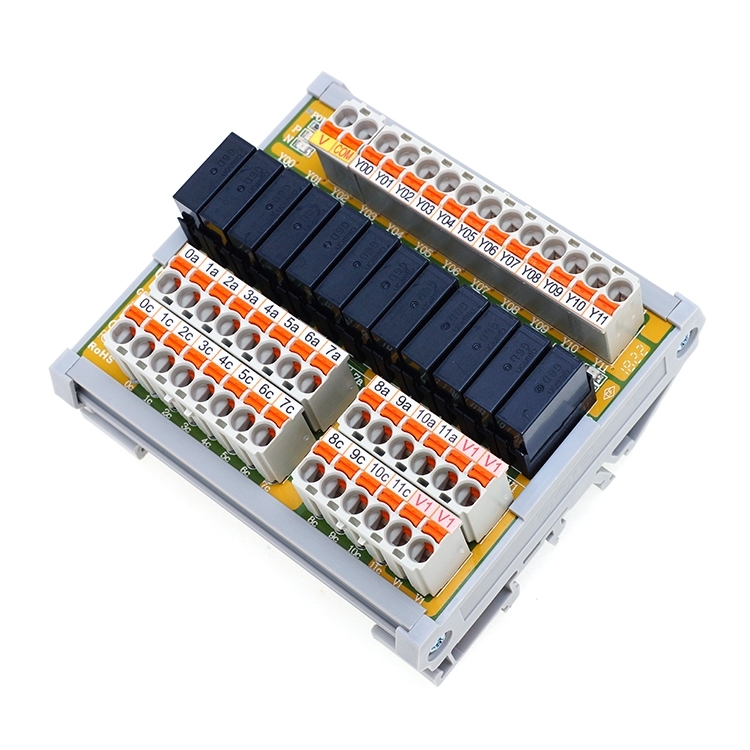

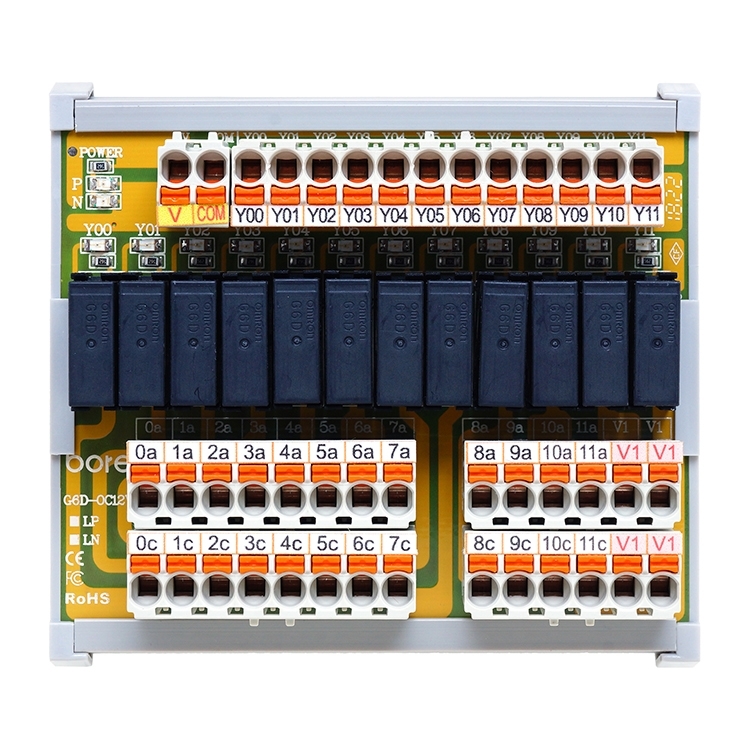

OMRON RELAY
G6D-OC12V
- 24VDC 12-point OMRON miniature relay module
- Equipped with WAGO 5.0mm push-in terminals for easy wiring
- Universal model, compatible with various PLC controller brands
- Supports both NPN/PNP types
- Plug-in relay for easy replacement and maintenance

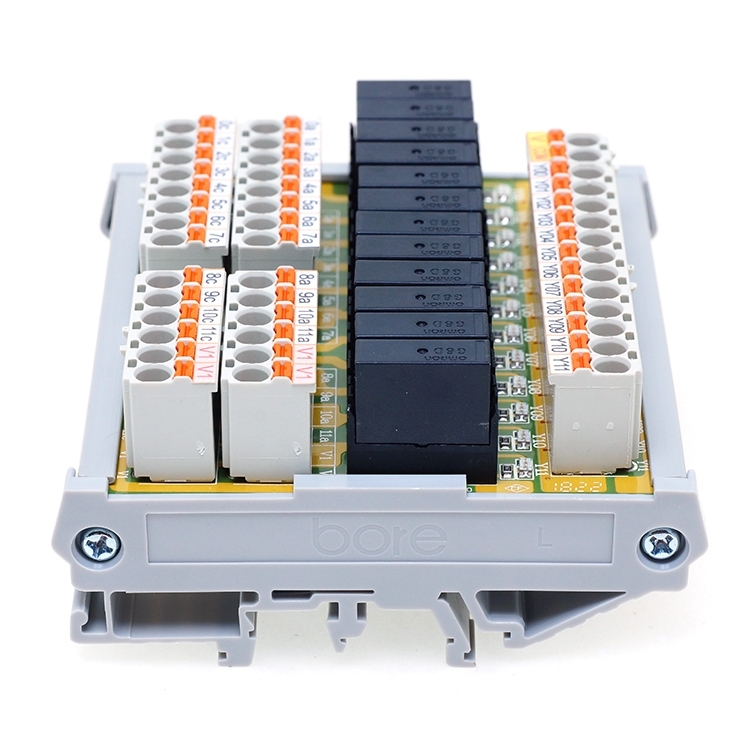

- DIN-35mm aluminum rail mounting design
- Lightweight and compact, suitable for various applications
- For 3D files, please contact your sales representative
PLEASE SELECT PRODUCT ITEM NO.
- Uses OMRON G6D-1A-ASI-DC24 series relay (1a contact), only 65mm in length and 125mm in height, reducing overall module size by 50% for a more compact, space-saving design
- Supports high-density installation, reducing footprint by approximately 45%
- Compact power relay used for output in PC (programmable controller), temperature controllers, etc.
- Lighter overall module with industry’s smallest-level slim design, easy wiring, fast daisy-chaining, and simple replacement
- Light, slim, short, and compact dimensions with various series and terminal block options available
- Single contact, low power consumption, and reduced carbon emissions
- High compatibility and versatility to meet all your application needs
| Specification | Data |
|---|---|
| Specifications | |
| Types of Relay | 小型功率繼電器 |
| Product Name | 12點 OMRON 繼電器模組 |
| Correspondence with PLC/CNC Brands | 通用款 |
| Subtable Purpose | 控制設備輸出用 |
| Polarity | NPN / PNP 兼容 |
| Numbers of Channel | 12 |

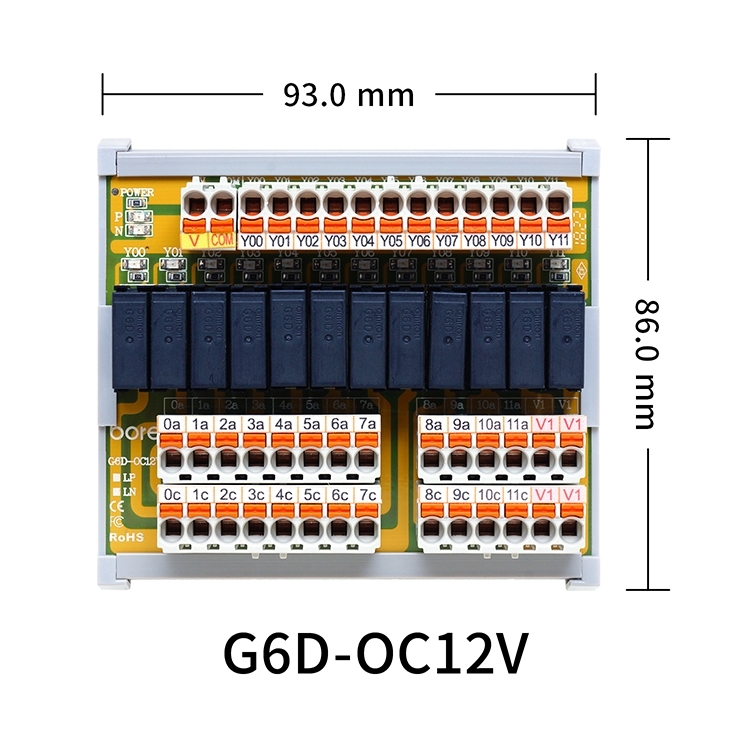

| Dimensions | L93.0 X W86.0 X H44.5 mm |
| Brands of Relay | OMRON |
| Item No. of Relay | G6D-1A-ASI-DC24 |
| Contact Type | 1a (SPST-NO) |
| Poles | 1 pole |
| Protection of Relay | 塑料密封型 |
| Brands of Terminal Block | WAGO |
| Types of Terminal Block | 5.0mm 直插彈片式端子台 |
| Applicable Wire Diameter | 12~28 AWG |
| Types of Connector | 無 |
| Contact Protection | 無 |
| LED Power Indicator | 有 (綠色) |
| LED Action Indicator | 有 (紅色) |
| Types of Bottom Shield | 鎖鋁軌 |
| Specifications | |
| Performance | |
| Rated Voltage | DC 24V |
| Rated Current (mA) | 8.3 mA |
| Rated Current (mA) | 99.6 mA |
| Coil Resistance (Ω) | 2,880 Ω |
| Operate Voltage | 70% 以下 |
| Release Voltage | 10% 以上 |
| Max. Voltage (V) | 160% (at 23℃) |
| Power Consumption (mW) | 約 2.4 W |
| Contact Rated Load | AC - 250V : 5A / DC - 30V : 5A |
| Contact Current | 5A |
| Max. Contact Voltage | AC - 250V / DC - 30V |
| Max. Contact Current | 5A |
| Contact Resistance | 100 mΩ以下 |
| Operating Time | 10 ms 以下 |
| Release Time | 5 ms 以下 |
| Mechanical Operating Life | 2,000 萬次以上 (開闗頻率 : 18, 000 次 / 小時 |
| Electrical Operating Life | 7萬次以上 (電阻性負載 AC-250V : 5A / DC - 30V : 5A ) (最大開關頻率 1,800 次 / 小時) 30萬次以上 (電阻性負載 AC-250V : 2A / DC-30V : 2A ) ( 最大開關頻率 1,800 次 / 小時) |
| Insulation Resistance | 1,000 MΩ以上 |
| Withstand Voltage (Between Coil and Contact) | AC 3,000V 50 / 60 Hz 1 分鐘 |
| Withstand Voltage ((Between Contact and Contact)) | AC 750V 50 / 60 Hz 1 分鐘 |
| Impulse Withstand Voltage (Between Coil and Contact) | 6kV (1.2×50μs) |
| Vibration Resistance (Durability) | 10~55~10Hz 單振幅 0.75mm (雙振幅 1.5mm) |
| Vibration Resistance (Misoperation) | 10~55~10Hz 單振幅 0.75mm (雙振幅 1.5mm) |
| Shock Eesistance (Durability) | 1,000m/s 2 |
| Shock Eesistance (Misoperation) | 100m/s 2 |
| Material Information | Ag合金 (無Cd材料) |
| Material of Contacts | Ag合金 (無Cd材料) |
| Weight (g) | 約 167.6g |
| Commerical Data | |
| H.S. Code | 8536.41.00.00-8 |
| Place of Origin | Taiwan (R.O.C) |
| Ambient Operating Condition | |
| Ambient Operating Temperature | -25~+70℃ (無結冰、無凝露) |
| Ambient Operating Humidity | 5~85% RH |
| Installation | |
| Relays | 插拔式 |
| Modules | DIN-35mm 標準導軌式安裝 |
| Certifications | |
| International Certification | CE、FCC、RoHS、UL/CSA、PMC、TÜVNORD |
