- CJ1-DXO40MOB
IDC / MIL Connector
CJ1-DXO40MOB

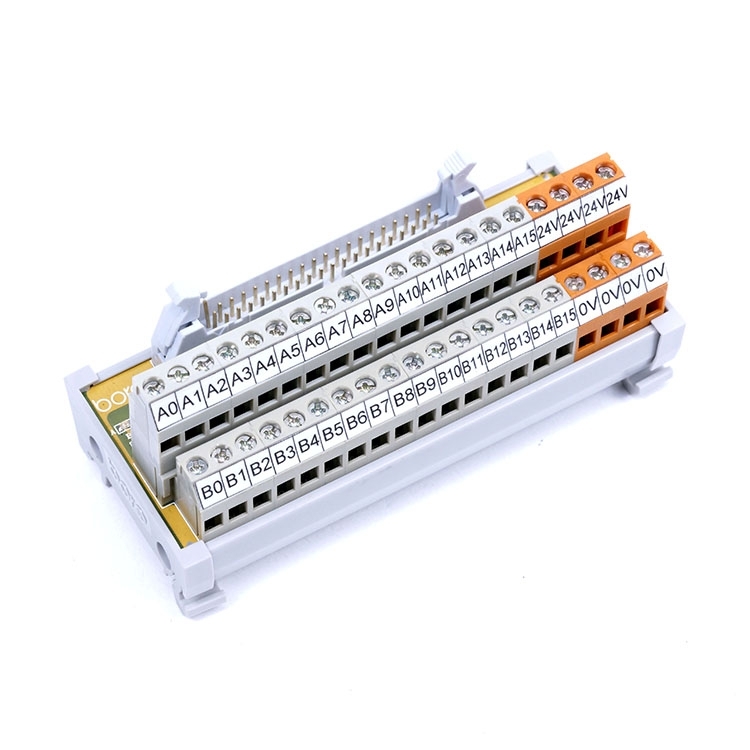

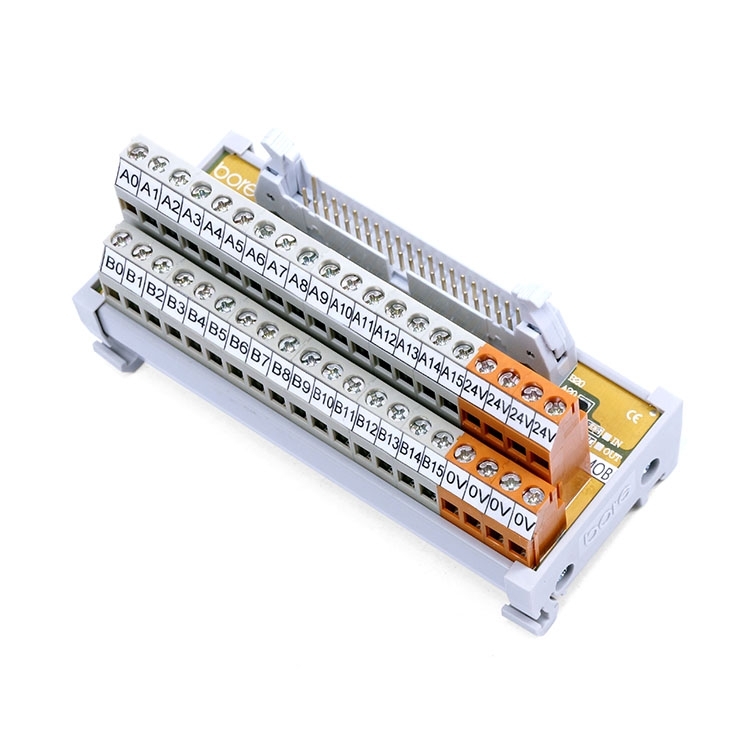

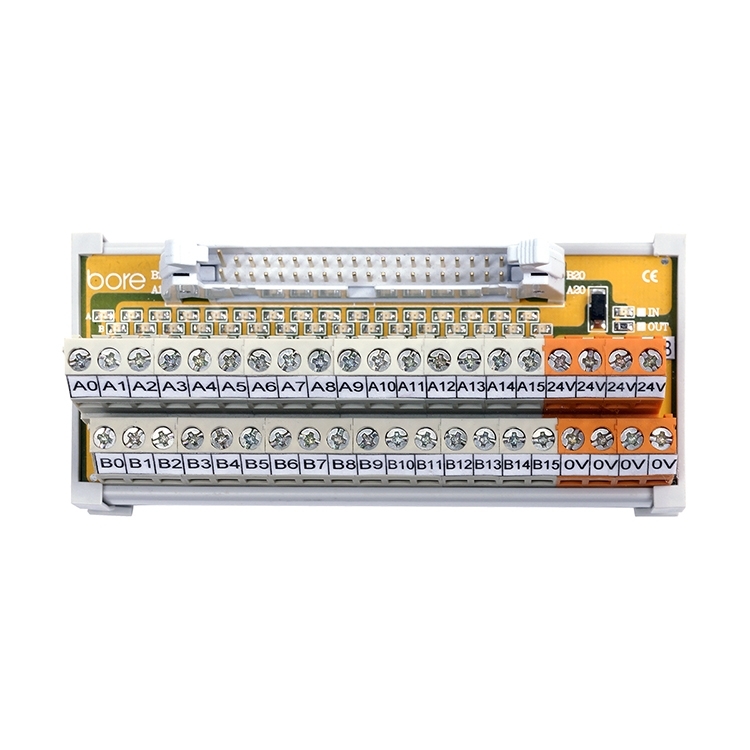

- 40P IDC connector with LED I/O signal relay module
- Exclusive for OMRON CJ1W-OD231 series
- Equipped with DECA 5.0mm European terminal block
- 40P connector matches 40P terminal block
- Easy wiring, expandable, fast connection between panel, equipment, and controller I/O signals
- Suitable for various industrial automation applications
- For 3D files, please contact the sales representative
PLEASE SELECT PRODUCT ITEM NO.
- 40-point IDC connector to 5.0mm European terminal block adapter
- Compatible with all PLCs using 40P IDC/MIL box header connectors on the market
- Adopts screw-lock terminal blocks for secure and firm wiring without loosening
- Industrial-grade I/O signal relay module, standard interface allows flexible expansion on various PLC and CNC boards
- Equipped with LED indicators for each signal, making wiring status clear at a glance
- Gold-plated IDC box header ensures strong conductivity, better contact, less loss, and more stable signals

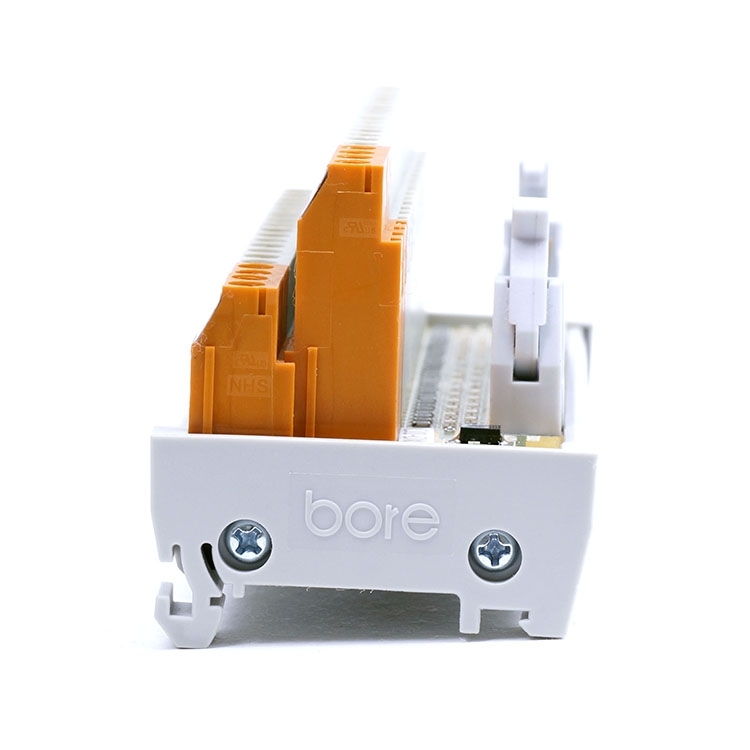

- Mountable on standard 35mm DIN rail
- Specifically developed I/O interface module for OMRON PLCs, requiring only one cable for connection, saving panel space and simplifying wiring
- Rearranged I/O pin layout for easier and clearer wiring
- Provides interface conversion and signal distribution functions between different interfaces, supporting up to 100 channels to meet flexible field requirements
| Specification | Data |
|---|---|
| Specifications | |
| Product Name | 40P IDC牛角接頭 歐姆龍專用訊號中繼模組 |
| No. of Poles | 40P (poles) |
| Correspondence with PLC/CNC Brands | OMRON |
| Polarity (PLC Output) | NPN |
| Subtable Purpose | 適用於中大型 PLC 輸出模組外接訊號轉板、控制設備輸出 |
| LED Indicator | Y |

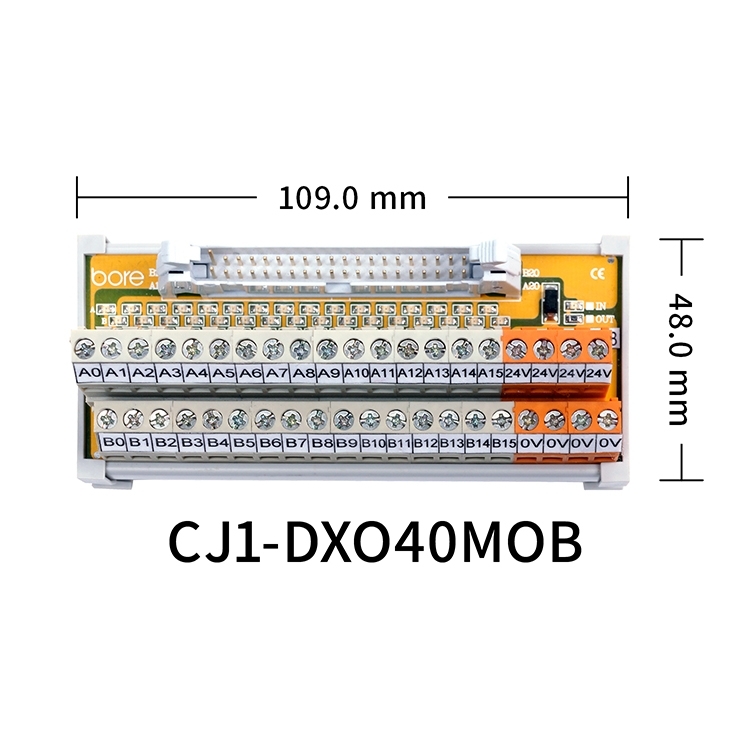

| Dimensions | L109.0 X W48.0 X H57.9 mm |
| Brands of Terminal Block | DECA |
| Types of Terminal Block | 5.0mm 歐規端子台(雙排，上A下B) |
| Types of Connector | 40-PIN IDC 牛角連接器 |
| No. of Connectors | 1 |
| Contact Protection | N |
| Types of Bottom Shield | 鎖鋁軌 |
| Specifications | |
| Performance | |
| Rated Voltage | AC - 125V ~ DC - 30V |
| Rated Current (mA) | 1A |
| Withstand Voltage | AC - 500V 1min |
| Insulation Resistance (Ω) | 100 MΩ |
| Applicable Wire Diameter | 12~28 AWG |
| Material Information | |
| Materials of Module | 塑膠本體、 PCB板 (FR-4 玻璃纖維) |
| Weight (g) | 105.1 g |
| Commerical Data | |
| H.S. Code | 8517.62.00.00-5 |
| Place of Origin | Taiwan (R.O.C) |
| Installation | |
| Connector | 一對一連接 (連接器與端子台對接) |
| Modules | DIN-35mm 標準導軌式安裝 |
| Certifications | |
| International Certification | CE、FCC、RoHS |
