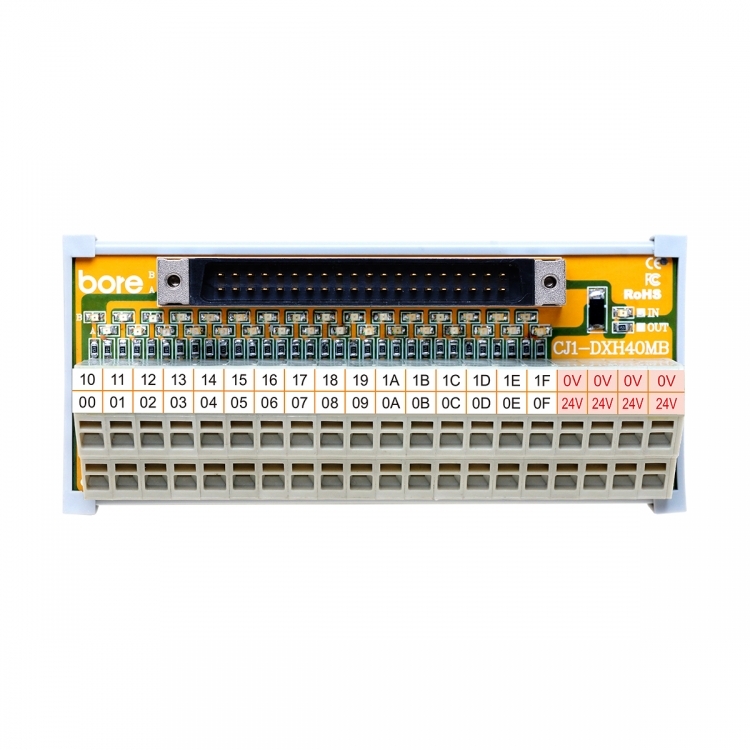

FUJITSU Connector
CJ1-DXH40FB
- 40P with LED FUJITSU Connector I/O Signal Relay Module
- Dedicated for Mitsubishi QX4 / QX71 and Fuji NP1Y32T09P1 series
- Uses DECA 5.0mm push-in spring terminal block
- 40P connector corresponds to 40P terminal block connection
- Easy wiring, flexible expansion, fast connection between panel, equipment and controller I/O signals
- Suitable for various industrial automation equipment
- For 3D files, please contact the sales representative
PLEASE SELECT PRODUCT ITEM NO.
- 40-point FUJITSU connector to 5.0mm push-in spring terminal block
- Compatible with all PLCs on the market with 40P FUJITSU connectors
- Adopts dual-layer PCB terminal block with high-density space-saving design, suitable for wiring in confined spaces
- Industrial-grade I/O signal relay module, standard interface for flexible expansion with various PLC and CNC control boards
- Equipped with LED indicators for each signal, allowing clear visual status for easier wiring tasks
- Uses gold-plated FUJITSU connectors for excellent conductivity, better contact, reduced loss, and more stable signal
- Can be mounted on standard 35mm DIN rail
- Specifically developed I/O interface module for Mitsubishi and Fuji PLCs, allowing easy signal conversion with one cable, reducing control panel size and simplifying wiring for easier installation and maintenance
- I/O pin re-arrangement makes wiring simpler and clearer
- Provides interface conversion and signal distribution functions using industrial-standard connectors, supports up to 100-point signal allocation, flexible for on-site configurations
| Specification | Data |
|---|---|
| Specifications | |
| Product Name | |
| No. of Poles | |
| Correspondence with PLC/CNC Brands | |
| Polarity (PLC Output) | |
| Subtable Purpose | |
| LED Indicator | |

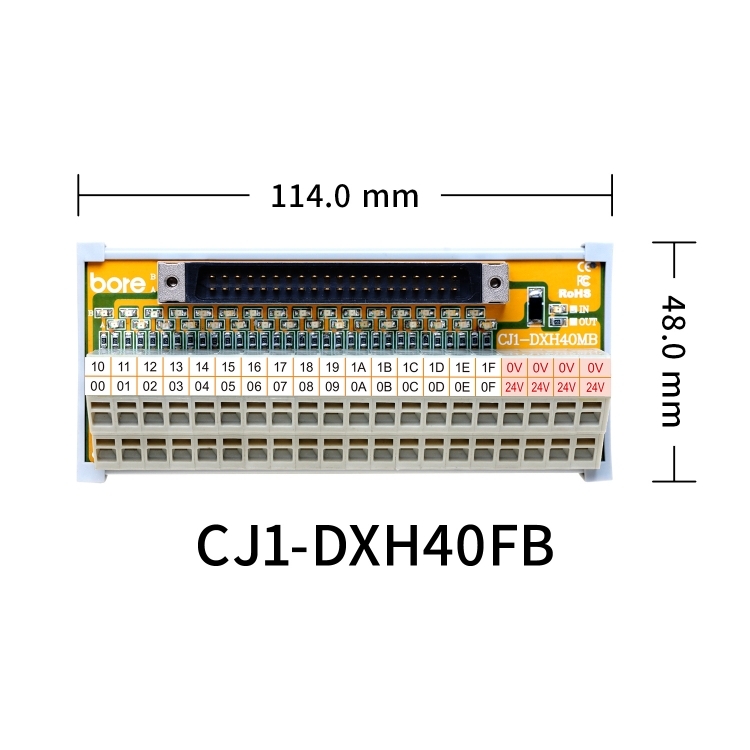

| Dimensions | |
| Brands of Terminal Block | |
| Types of Terminal Block | |
| Types of Connector | |
| No. of Connectors | |
| Contact Protection | |
| Types of Bottom Shield | |
| Specifications | |
| Performance | |
| Rated Voltage | |
| Rated Current (mA) | |
| Withstand Voltage | |
| Insulation Resistance (Ω) | |
| Applicable Wire Diameter | |
| Material Information | |
| Materials of Module | |
| Weight (g) | |
| Commerical Data | |
| H.S. Code | |
| Place of Origin | |
| Installation | |
| Connector | |
| Modules | |
| Certifications | |
| International Certification |
| PLC BRAND | SERIES | ITEM NO. |
|---|
