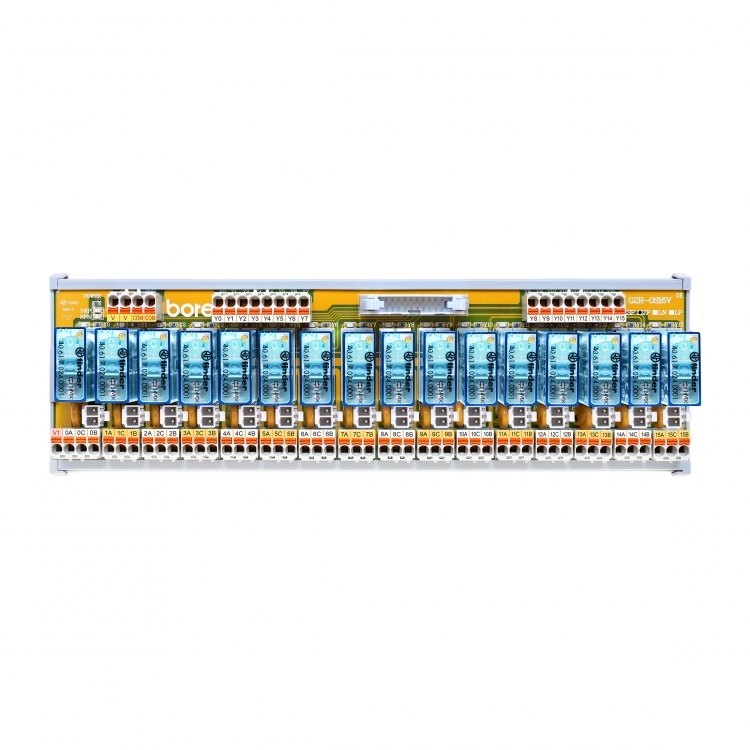

FINDER RELAY
G2R-OS16V-JSP-FD
- 24VDC 16-point Finder relay module
- Adopts WAGO 5.0mm EU standard push-in spring terminals for easy wiring
- Universal model compatible with various PLC controller brands
- Supports both NPN and PNP types
- Pluggable relays for easy replacement and maintenance
- DIN-35mm aluminum rail mounting design
- Built-in dual LED indicators for power and operation
- Contact sales for 3D files
PLEASE SELECT PRODUCT ITEM NO.
- Both control and load terminals adopt the latest push-in connection design for simplified and convenient wiring
- Uses original Finder relays with gold-plated anti-oxidation sockets, offering better conductivity and longer service life
- Each pluggable relay is independent with its own base and compatible with other relay brands for easy replacement and maintenance
- High safety design with dielectric strength up to 5000V between coil and contacts, and 10000V surge resistance
- Built-in surge absorber for contact protection
- Bidirectional quick connection between PLC and relay module saves time, effort, and wiring
- Adopts Finder 40.61.7.024.0001 relay with high contact capacity up to 16A
- Built-in jumper component and short bar simplify coil terminal bridging
- Industrial-grade design with strong anti-interference and future expandability
- Quick installation on standard 35mm DIN rail
- Widely used in manufacturing, machine tools, machinery, and industrial automation industries
| Specification | Data |
|---|---|
| Product Name | |

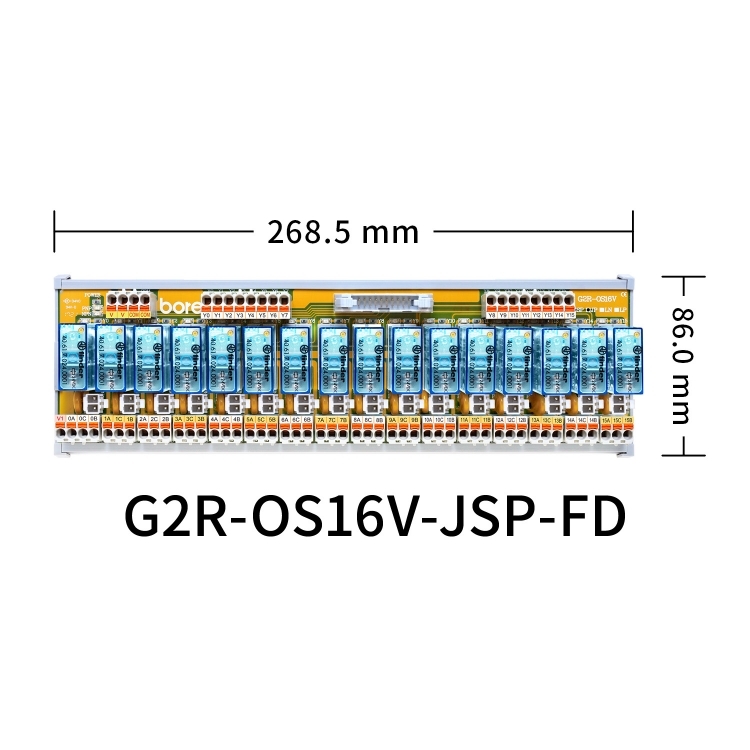

| Dimensions | |
| Numbers of Channel | |
| Types of Relay | |
| Brands of Relay | |
| Item No. of Relay | |
| Contact Type | |
| Types of Connector | |
| Brands of Terminal Block | |
| Types of Terminal Block | |
| Correspondence with PLC/CNC Brands | |
| Contact Protection | |
| LED Power Indicator | |
| LED Action Indicator | |
| Coil Resistance (Ω) | |
| Rated Input Voltage (V) | |
| Rated Input Current | |
| Power Consumption (VA, W) | |
| Current Consumption (A) | |
| Max. Contact Current | |
| Max. Contact Voltage | |
| Contact Rated Load | |
| Withstand Voltage (Between Coil and Contact) | |
| Mechanical Operating Life | |
| Electrical Operating Life | |
| Types of Voltage | |
| Types of Bottom Shield |
| PLC BRAND | SERIES | ITEM NO. |
|---|
