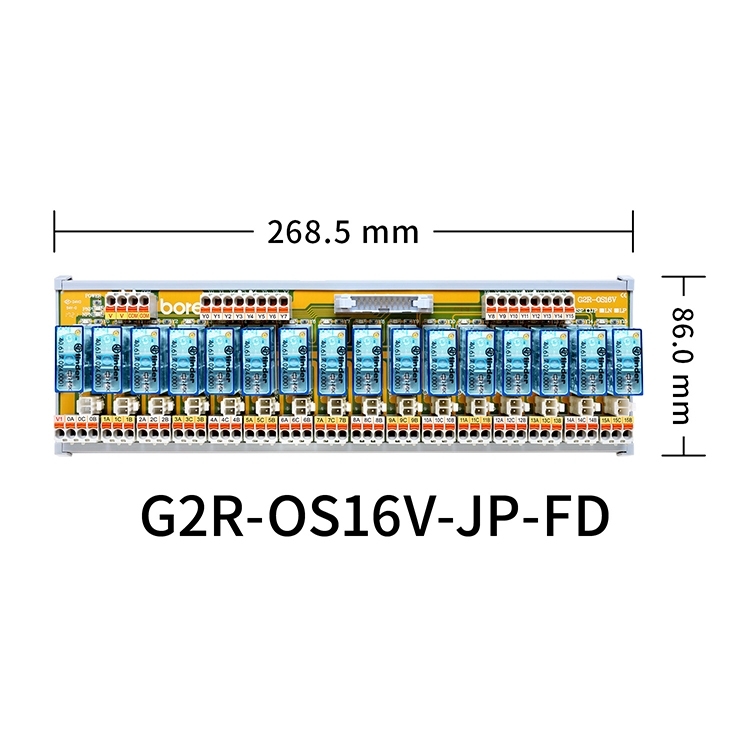

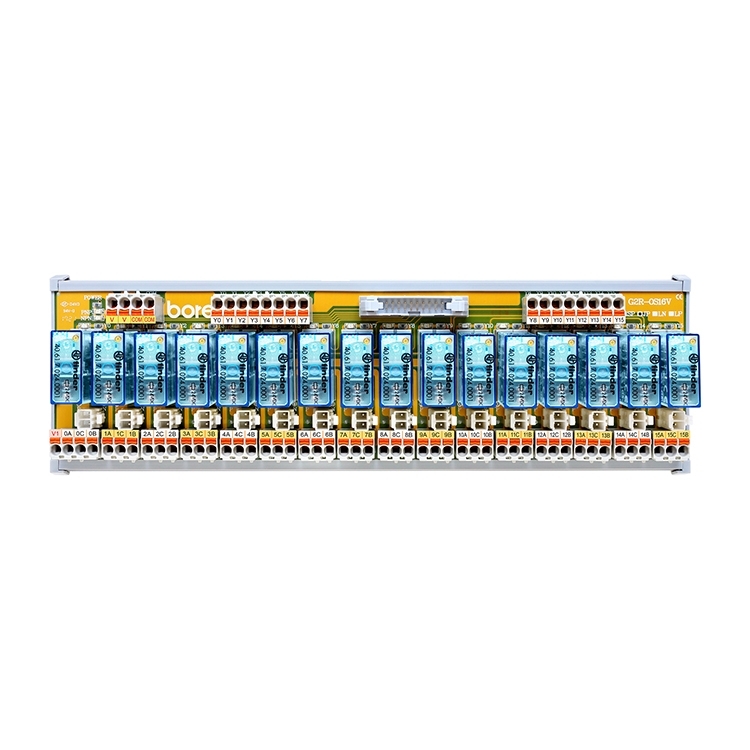

FINDER RELAY
G2R-OS16V-JP-FD
- 24VDC 16-point Finder Relay Module
- Uses WAGO 5.0mm EU standard push-in spring terminals for easy wiring
- Universal type, compatible with all mainstream PLC controller brands
- Compatible with both NPN and PNP signals
- Plug-in relay design for easy replacement and convenient maintenance
- DIN-35mm aluminum rail installation design
- Built-in LED power and operation indicators
- Contact sales for 3D files
PLEASE SELECT PRODUCT ITEM NO.
- Both control and load sides adopt the latest push-in terminal design, simplifying wiring and easy to use
- Equipped with original Finder relays and gold-plated anti-oxidation bases for better conductivity and longer lifespan
- Each plug-in relay is independent with its own base, compatible with other relay brands for easy replacement and maintenance
- Excellent safety design with dielectric strength up to 5000V between coil and contact, and 10000V surge resistance
- Bi-directional fast connection between PLC and relay module saves time, labor, and wiring
- Uses Finder 40.61.7.024.0001 relay with high current capacity up to 16A
- Built-in jumper component protection, using short bars simplifies coil side bridging
- Industrial-grade design, anti-interference, highly scalable for future expansion
- Quick installation on standard 35mm DIN rail
- Widely used in manufacturing, machine tools, mechanical industry, and industrial automation fields
| Specification | Data |
|---|---|
| Product Name | |
| Dimensions | |
| Numbers of Channel | |
| Types of Relay | |
| Brands of Relay | |
| Item No. of Relay | |
| Contact Type | |
| Types of Connector | |
| Brands of Terminal Block | |
| Types of Terminal Block | |
| Correspondence with PLC/CNC Brands | |
| Contact Protection | |
| LED Power Indicator | |
| LED Action Indicator | |
| Coil Resistance (Ω) | |
| Rated Input Voltage (V) | |
| Rated Input Current | |
| Power Consumption (VA, W) | |
| Current Consumption (A) | |
| Max. Contact Current | |
| Max. Contact Voltage | |
| Contact Rated Load | |
| Withstand Voltage (Between Coil and Contact) | |
| Mechanical Operating Life | |
| Electrical Operating Life | |
| Types of Voltage | |
| Types of Bottom Shield |
| PLC BRAND | SERIES | ITEM NO. |
|---|
