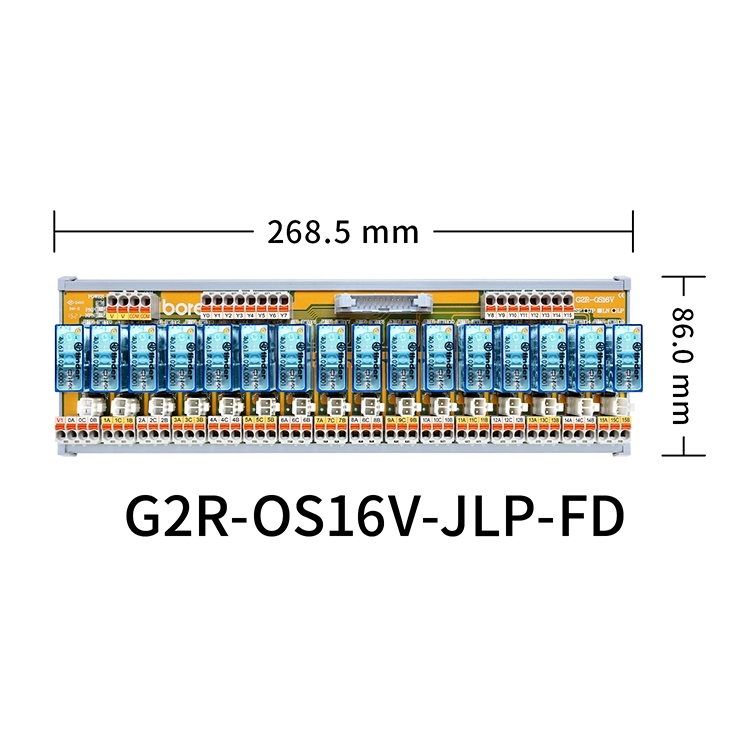

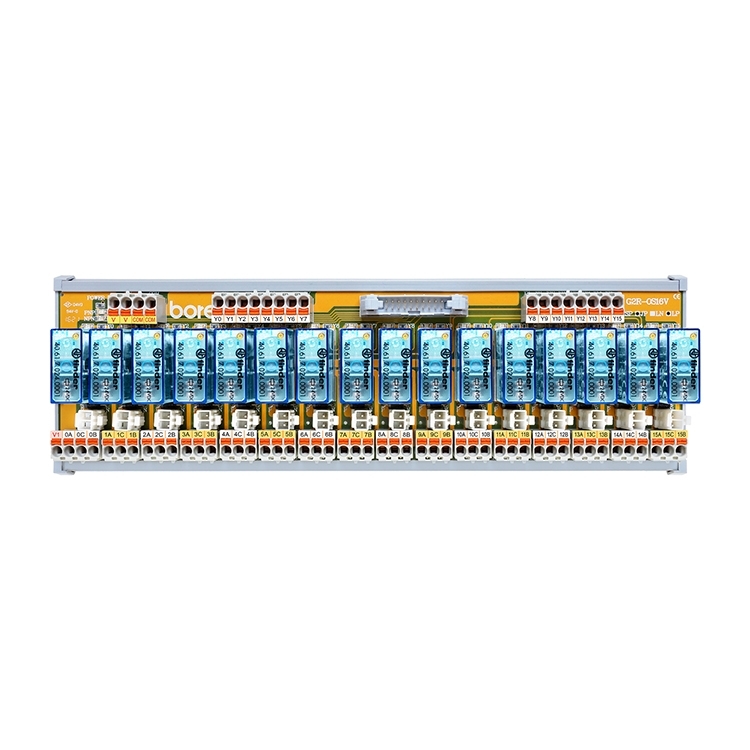

FINDER RELAY
G2R-OS16V-JLP-FD
- 24VDC 16-point Finder relay module
- Equipped with WAGO 5.0mm EU standard push-in spring terminals for easy wiring
- Universal model, compatible with all major PLC controller brands
- Supports both NPN and PNP input types
- Plug-in relay, easy to replace and maintain
- DIN-35mm aluminum rail mounting design
- Built-in dual LED indicators for power and operation
- Contact sales representative for 3D files
PLEASE SELECT PRODUCT ITEM NO.
- Both control and load sides adopt the latest push-in terminal design for simplified and user-friendly wiring
- Equipped with original Finder relays and gold-plated bases, offering better conductivity and longer lifespan with oxidation resistance
- Plug-in relays are independent per channel with base, compatible with other brands for easy replacement and maintenance
- Excellent safety design: dielectric strength up to 5000V between coil and contacts, and 10000V surge protection
- Built-in P-type fast recovery diode contact protection
- Fast bi-directional connection between PLC and relay module, saving time, effort, and wiring
- Adopts Finder 40.61.7.024.0001 relay with high contact capacity, supporting up to 16A current
- Built-in jumper contact protection with short bar simplifying coil side wiring
- Industrial-grade design with strong anti-interference and future scalability
- Quickly mountable on standard 35mm DIN rail
- Widely used in manufacturing, machine tools, machinery, and industrial automation
| Specification | Data |
|---|---|
| Product Name | |
| Dimensions | |
| Numbers of Channel | |
| Types of Relay | |
| Brands of Relay | |
| Item No. of Relay | |
| Contact Type | |
| Types of Connector | |
| Brands of Terminal Block | |
| Types of Terminal Block | |
| Correspondence with PLC/CNC Brands | |
| Contact Protection | |
| LED Power Indicator | |
| LED Action Indicator | |
| Coil Resistance (Ω) | |
| Rated Input Voltage (V) | |
| Rated Input Current | |
| Power Consumption (VA, W) | |
| Current Consumption (A) | |
| Max. Contact Current | |
| Max. Contact Voltage | |
| Contact Rated Load | |
| Withstand Voltage (Between Coil and Contact) | |
| Mechanical Operating Life | |
| Electrical Operating Life | |
| Types of Voltage | |
| Types of Bottom Shield |
| PLC BRAND | SERIES | ITEM NO. |
|---|
