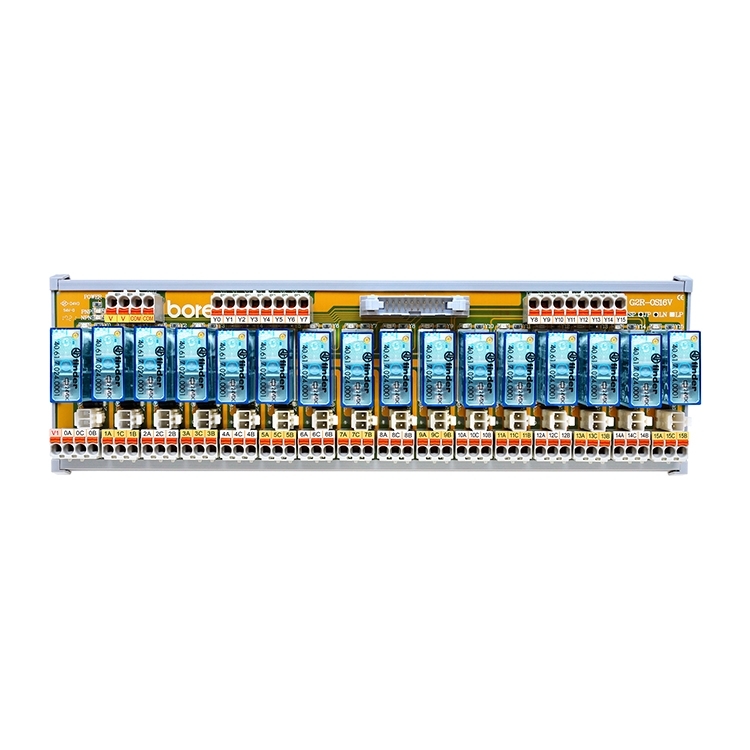

FINDER RELAY
G2R-OS16V-JLN-FD
- 24VDC 16-Channel Finder Relay Module
- Equipped with WAGO 5.0mm European-style push-in terminals for easy wiring
- Universal type, compatible with various PLC controller brands on the market
- Compatible with both NPN / PNP signals
- Plug-in relay, easy to replace and maintain
- DIN-35mm aluminum rail mounting design
- Built-in dual LED indicators for power and operation
- For 3D files, please contact your sales representative
PLEASE SELECT PRODUCT ITEM NO.
- The control and load terminals adopt the latest push-in wiring design for simplified and convenient wiring
- Equipped with original Finder relays and gold-plated sockets for better conductivity, anti-oxidation, and long service life
- Each plug-in relay is independent and socketed, compatible with other brands for easy replacement and maintenance
- Excellent safety design with dielectric strength up to 5000V and surge resistance up to 10000V between coil and contact
- Built-in N-type fast recovery diode contact protection device
- Bidirectional quick connection between PLC and relay module saves time, effort, and wiring
- High contact capacity with maximum current up to 16A
- Built-in jumper component contact protection; shorting bar simplifies coil terminal bridging
- Industrial-grade design with anti-interference and future high scalability
- Quick installation on standard 35mm DIN rail
- Widely used in manufacturing, machine tools, machinery, and industrial automation
| Specification | Data |
|---|---|
| Product Name | |
| Dimensions | |
| Numbers of Channel | |
| Types of Relay | |
| Brands of Relay | |
| Item No. of Relay | |
| Contact Type | |
| Types of Connector | |
| Brands of Terminal Block | |
| Types of Terminal Block | |
| Correspondence with PLC/CNC Brands | |
| Contact Protection | |
| LED Power Indicator | |
| LED Action Indicator | |
| Coil Resistance (Ω) | |
| Rated Input Voltage (V) | |
| Rated Input Current | |
| Power Consumption (VA, W) | |
| Current Consumption (A) | |
| Max. Contact Current | |
| Max. Contact Voltage | |
| Contact Rated Load | |
| Withstand Voltage (Between Coil and Contact) | |
| Mechanical Operating Life | |
| Electrical Operating Life | |
| Types of Voltage | |
| Types of Bottom Shield |
| PLC BRAND | SERIES | ITEM NO. |
|---|
