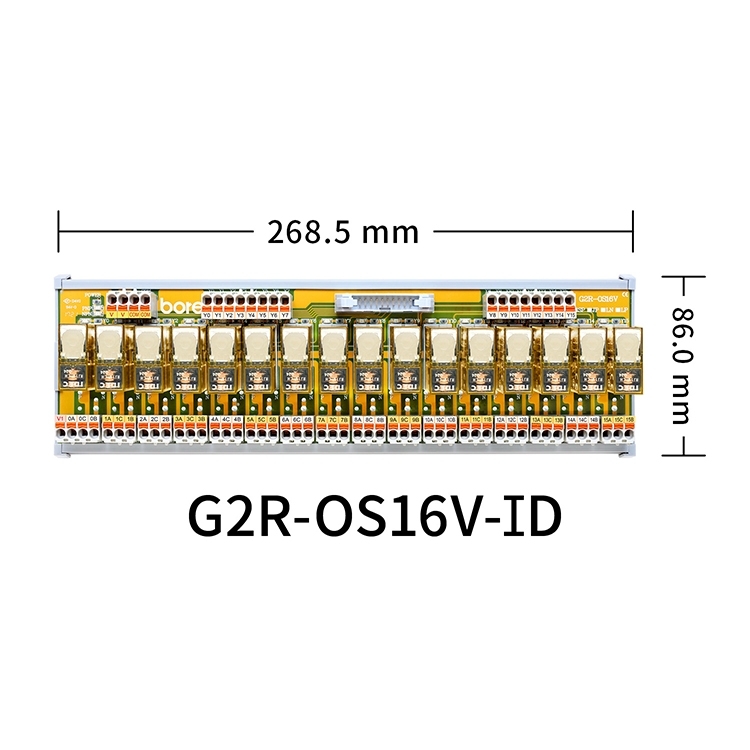

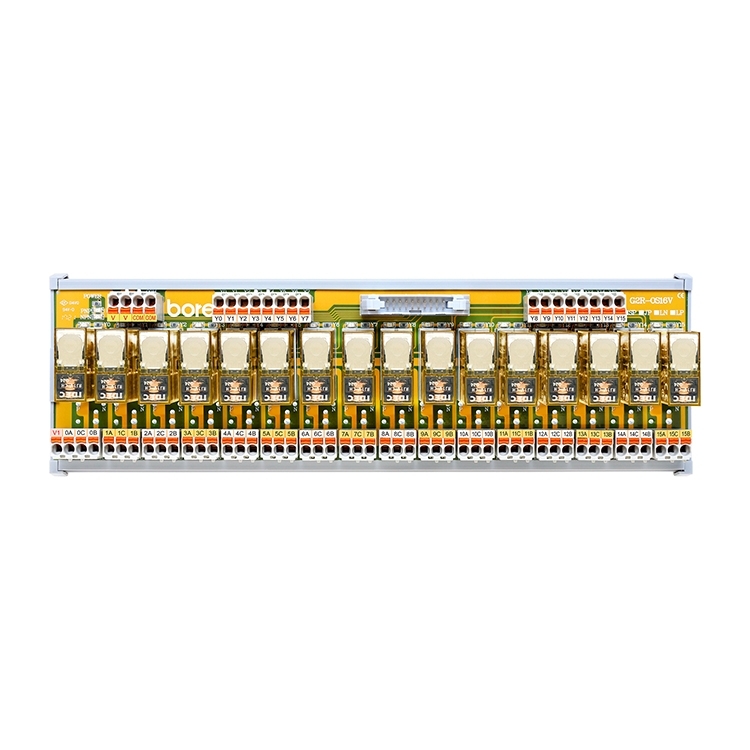

IDEC RELAY
G2R-OS16V-ID
- 1c Contact (SPDT)
- 16-Channel Relay Module
- Equipped with WAGO 5.0mm European-style push-in spring terminal blocks
- Uses IDEC RJ1V-CH-DC24 relay
- Equipped with universal connector
- Compatible with general PLC brands
- For 3D files, please contact sales representative
PLEASE SELECT PRODUCT ITEM NO.
- Both control and controlled terminals use the latest push-in terminal wiring design for simplified and convenient wiring
- Uses original IDEC relays with gold-plated base for anti-oxidation and durability, providing better conductivity and longer service life
- Each relay is independent and pluggable with a socket base, compatible with relays from other brands for easy replacement and maintenance
- Excellent safety design with dielectric strength up to 5000V between coil and contacts, and surge resistance up to 10000V
- Used for IO expansion of input/output contacts in industrial control, can be connected to PLC to expand its input and output ports
- Two-way fast connection between PLC and Channels Relay Module, saving time, labor, and wiring
- Uses IDEC RJ1V-CH-DC24 relay with high contact capacity, supporting current up to 16A
- Industrial-grade design with strong interference resistance and future scalability
- Quick installation on standard 35mm DIN rail
- Widely used in major manufacturing industries, machine tools, machinery, and industrial automation fields
- Humanized interface design, all terminals can be directly connected through wiring terminals, very convenient
| Specification | Data |
|---|---|
| Specifications | |
| Types of Relay | |
| Product Name | |
| Correspondence with PLC/CNC Brands | |
| Subtable Purpose | |
| Polarity | |
| Numbers of Channel | |
| Dimensions | |
| Brands of Relay | |
| Item No. of Relay | |
| Contact Type | |
| Poles | |
| Functions of Relay | |
| Protection of Relay | |
| Brands of Terminal Block | |
| Types of Terminal Block | |
| Applicable Wire Diameter | |
| Types of Connector | |
| Contact Protection | |
| LED Power Indicator | |
| LED Action Indicator | |
| Types of Bottom Shield | |
| Specifications | |
| Performance | |
| Rated Voltage | |
| Rated Current (mA) | |
| Total Current (mA) | |
| Insulation Resistance (Ω) | |
| Operate Voltage | |
| Release Voltage | |
| Max. Voltage (V) | |
| Resistive Load | |
| Inductive Load | |
| Max. Contact Voltage | |
| Max. Contact Current | |
| Operating Time | |
| Release Time | |
| Withstand Voltage (Between Coil and Contact) | |
| Withstand Voltage ((Between Contact and Contact)) | |
| Withstand Voltage (Between Different Polarity) | |
| Vibration Resistance (Durability) | |
| Vibration Resistance (Misoperation) | |
| Shock Eesistance (Durability) | |
| Shock Eesistance (Misoperation) | |
| Material Information | |
| Material of Contacts | |
| Weight (g) | |
| Commerical Data | |
| H.S. Code | |
| Place of Origin | |
| Ambient Operating Condition | |
| Ambient Operating Temperature | |
| Ambient Operating Humidity | |
| Installation | |
| Relays | |
| Modules | |
| Plug-in | |
| Certifications | |
| International Certification |
| PLC BRAND | SERIES | ITEM NO. |
|---|
