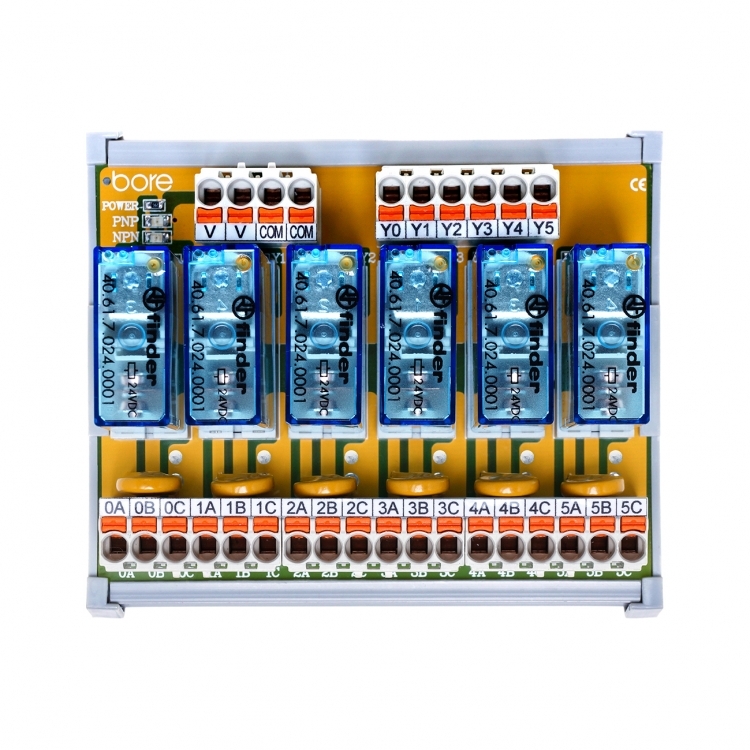

FINDER RELAY
G2R-OR06V-SP-FD
PLEASE SELECT PRODUCT ITEM NO.
| Specification | Data |
|---|---|
| Product Name | 6-point relay module G2R-OR06V-SP-FD |

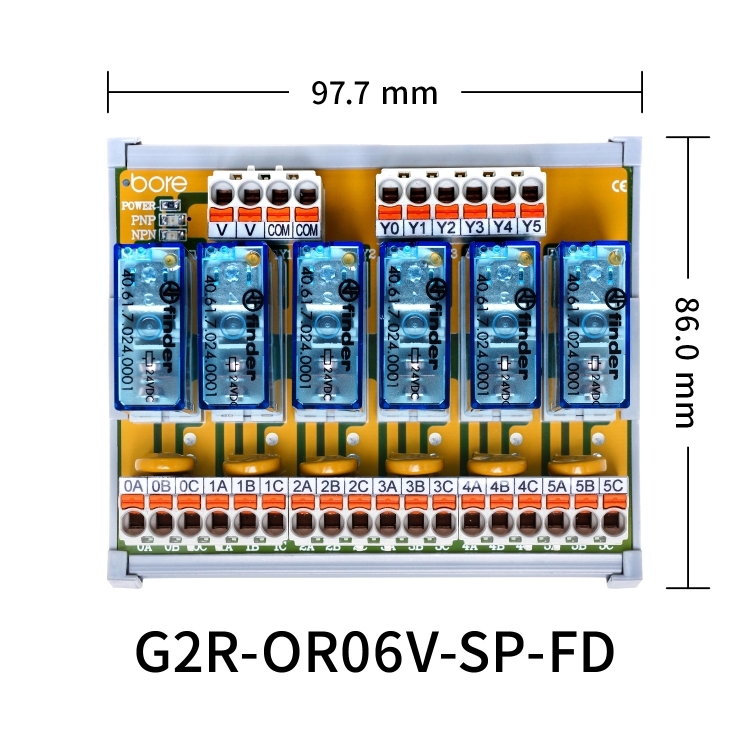

| Dimensions | L97.7 x W86 x H62 mm |
| Numbers of Channel | 6 |
| Types of Relay | Power relay |
| Brands of Relay | FINDER |
| Item No. of Relay | 40.61.7.024.0001 |
| Contact Type | 1c ( SPDT ) |
| Types of Connector | No connector |
| Brands of Terminal Block | WAGO |
| Types of Terminal Block | 5.0mm European standard straight-in spring-type terminal block |
| Correspondence with PLC/CNC Brands | Universal model |
| Contact Protection | surge absorber |
| LED Power Indicator | green light |
| LED Action Indicator | red light |
| Coil Resistance (Ω) | 1,150 Ω |
| Rated Input Voltage (V) | DC-24V |
| Rated Input Current | 126 mA |
| Power Consumption (VA, W) | 3.2W |
| Current Consumption (A) | 0.14A |
| Max. Contact Current | 30A |
| Max. Contact Voltage | AC - 400V |
| Contact Rated Load | AC1 - 4,000VA；AC15 ( AC - 230V ) - 750VA |
| Withstand Voltage (Between Coil and Contact) | 6 ( 8mm ) ( 1.2/50μs ) kV |
| Mechanical Operating Life | 10 million times |
| Electrical Operating Life | 100,000 times (rated load AC1) |
| Types of Voltage | DC 24V |
| Types of Bottom Shield | lock aluminum rail |
