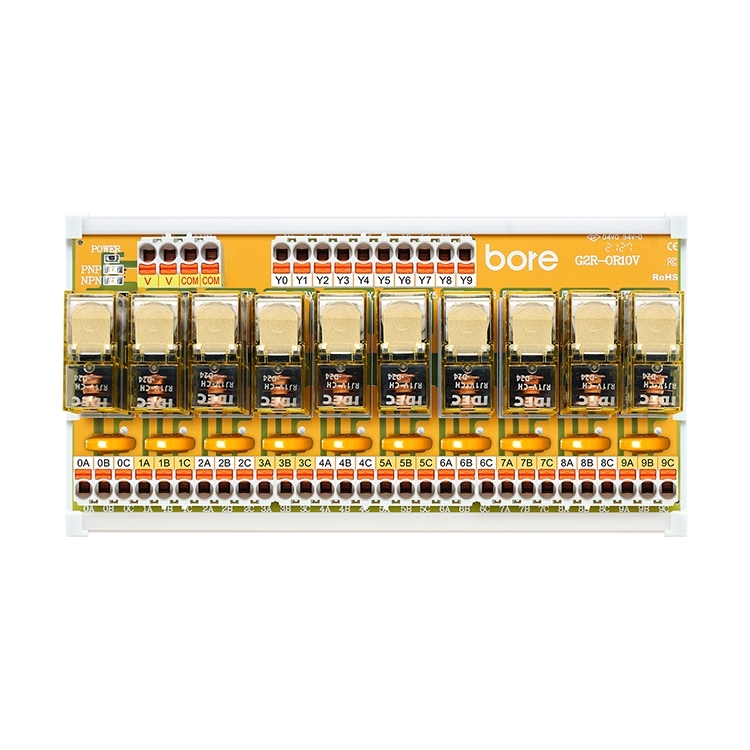

- 24VDC 10-point IDEC relay module
- Equipped with WAGO 5.0mm push-in spring terminals for easy wiring
- Universal model, compatible with major PLC controller brands
- Supports both NPN / PNP signal types
- Plug-in relay design, easy to replace and maintain
- DIN-35mm aluminum rail mount design
- Built-in dual LED indicators for power and operation
- Contact sales for 3D files
PLEASE SELECT PRODUCT ITEM NO.
- Both control and load terminals use the latest push-in terminal design for simplified and convenient wiring
- Equipped with original IDEC relays and gold-plated bases for anti-oxidation and durability, ensuring better conductivity and longer service life
- Each relay is plug-in and independent, with base included; compatible with relays from other brands for easy replacement and maintenance
- Excellent safety design with dielectric strength up to 5000V between coil and contact, and surge resistance up to 10000V
- Designed for I/O expansion in industrial control systems, compatible with PLCs to expand input and output ports
- Bidirectional quick connection between PLC and relay module saves time, effort, and wiring
- Uses IDEC RJ1V-CH-D24 relay with high contact capacity, supporting up to 16A current
- Built-in overvoltage protection with 470V surge absorber for clamping excess voltage and protecting sensitive components
- Industrial-grade design with anti-interference and high expandability for future use
- Quick installation on standard 35mm DIN rail
- Widely used in manufacturing, machine tools, machinery, and industrial automation fields
- User-friendly interface design, all terminals can be directly connected via wiring terminals
| Specification | Data |
|---|---|
| Specifications | |
| Types of Relay | 功率繼電器 |
| Product Name | 10點 IDEC 繼電器模組 |
| Correspondence with PLC/CNC Brands | 通用款 |
| Subtable Purpose | 控制設備輸出用 |
| Polarity | NPN / PNP 兼容 |
| Numbers of Channel | 10 |

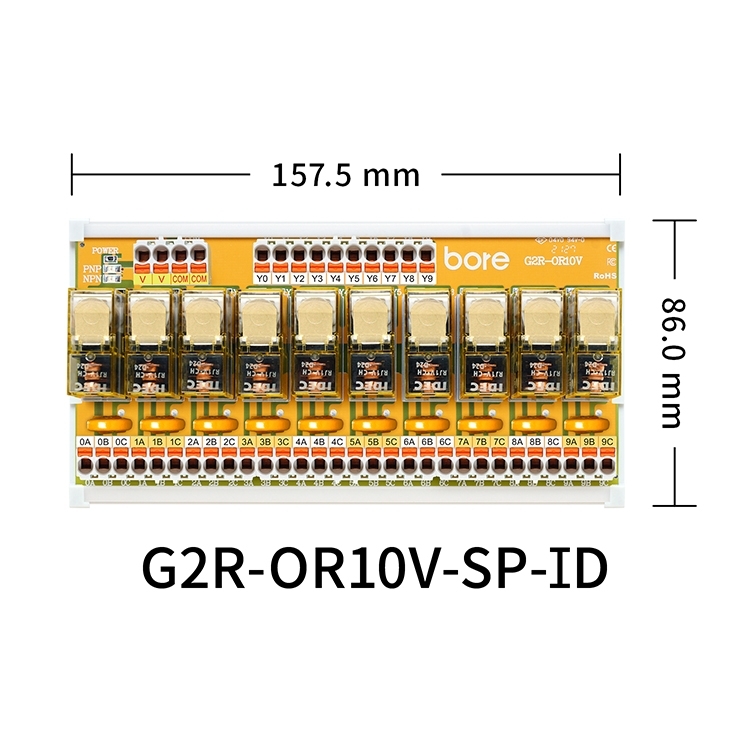

| Dimensions | L157.5 X W86.0 X H62.0 mm |
| Brands of Relay | IDEC |
| Item No. of Relay | RJ1V-CH-D24 |
| Contact Type | 1c (SPDT) |
| Poles | 1 pole |
| Functions of Relay | 高容量型 |
| Protection of Relay | 耐助焊劑型 |
| Brands of Terminal Block | WAGO |
| Types of Terminal Block | 5.0mm 直插彈片式端子台 |
| Applicable Wire Diameter | 12~28 AWG |
| Types of Connector | 無 |
| Contact Protection | 突波吸收器 (SP) |
| LED Power Indicator | 有 (綠色) |
| LED Action Indicator | 有 (紅色) |
| Types of Bottom Shield | 鎖鋁軌 |
| Specifications | |
| Performance | |
| Rated Voltage | DC 24V |
| Rated Current (mA) | 22.1 mA |
| Total Current (mA) | 221 mA |
| Insulation Resistance (Ω) | 1,080 Ω |
| Operate Voltage | 70% 以下 |
| Release Voltage | 10% 以上 |
| Max. Voltage (V) | 170％(at 20℃) |
| Resistive Load | AC - 250V : 16A / DC - 30V : 16A |
| Inductive Load | AC - 250V : 8A / DC - 30V : 8A |
| Max. Contact Voltage | AC – 250V / DC – 125V |
| Max. Contact Current | 16A |
| Operating Time | 15ms 以下 |
| Release Time | 10ms 以下 |
| Withstand Voltage (Between Coil and Contact) | 5,000V AC · 1 分鐘 |
| Withstand Voltage ((Between Contact and Contact)) | 1,000V AC · 1 分鐘 |
| Withstand Voltage (Between Different Polarity) | - |
| Vibration Resistance (Durability) | 10~55Hz 單振幅0.75mm |
| Vibration Resistance (Misoperation) | 10 ∼ 55Hz 單振幅0.75mm |
| Shock Eesistance (Durability) | 1,000m/s2 |
| Shock Eesistance (Misoperation) | NO 接點 : 200m/s2 NC 接點 : 100m/s2 |
| Material Information | |
| Material of Contacts | 銀錫銦 |
| Weight (g) | 約 387.6g |
| Commerical Data | |
| H.S. Code | 8536.41.00.00-8 |
| Place of Origin | Taiwan (R.O.C) |
| Ambient Operating Condition | |
| Ambient Operating Temperature | -40~+70ºC （無結冰） |
| Ambient Operating Humidity | 5~85％ RH （無結露） |
| Installation | |
| Relays | 插拔式 |
| Modules | DIN-35mm 標準導軌式安裝 |
| Plug-in | 附繼電器固定鈎 |
| Certifications | |
| International Certification | CE、FCC、RoHS |
