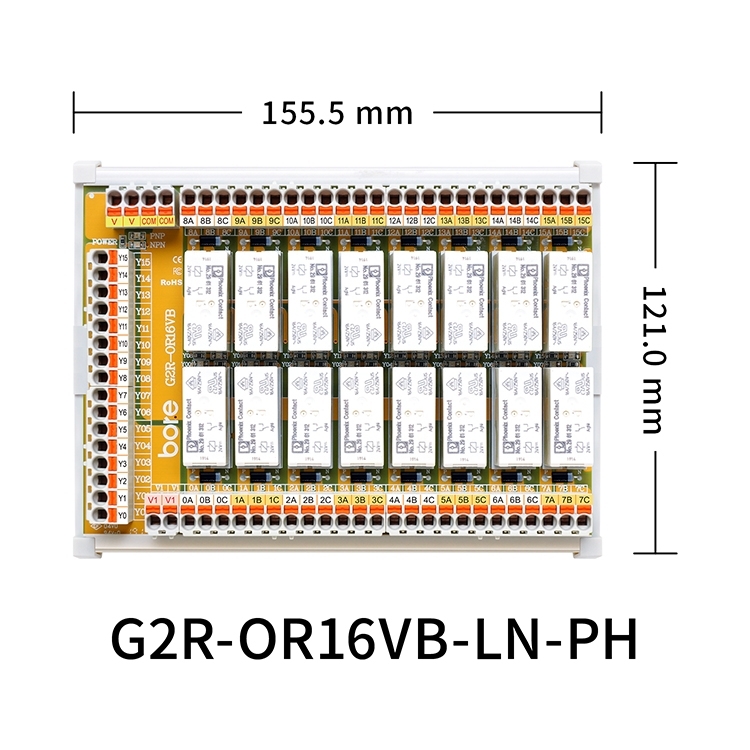

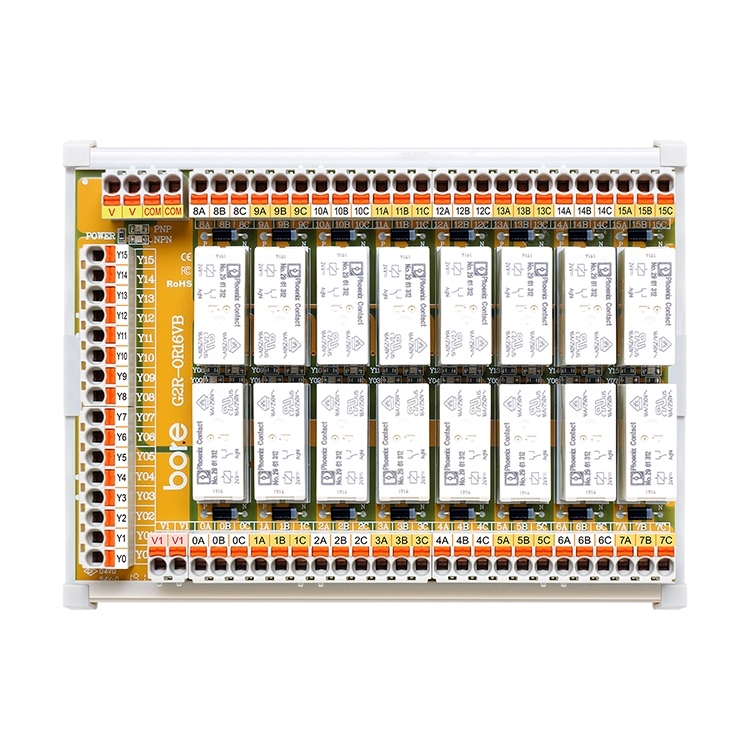

- G2R-OR16VB-LN-PH
PHOENIX CONTACT RELAY
G2R-OR16VB-LN-PH
- 24VDC 16-Point Phoenix Relay Module
- WAGO 5.0mm Push-in Terminal for Easy Wiring
- Universal Model, Compatible with Various PLC Controllers
- Supports Both NPN and PNP Signals
- Pluggable Relay for Easy Replacement and Maintenance
- DIN-35mm Aluminum Rail Mounting Design
- Built-in LED Power and Operation Indicators
- For 3D Files, Please Contact Sales
PLEASE SELECT PRODUCT ITEM NO.
- The control and controlled terminals adopt the latest push-in terminal wiring design, simplifying wiring and making it more convenient to use.
- Uses original Phoenix relays with gold-plated bases for oxidation resistance, durability, better conductivity, and long lifespan.
- Pluggable relays, each relay is independent with a base, compatible with other relay brands for easy replacement and maintenance.
- Excellent safety design with dielectric strength up to 5000V between the coil and contacts, and 10000V surge resistance.
- Used for I/O expansion of industrial control input and output contacts, connects to PLCs to extend input and output ports.
- Large contact capacity, supporting a maximum current of 16A.
- Built-in N-type fast recovery diode contact protection device.
- Industrial-grade design, anti-interference, and high scalability for future expansion.
- Quick and easy installation on standard 35mm DIN rail.
- Widely used in various manufacturing industries, machine tools, machinery, and industrial automation fields.
| Specification | Data |
|---|---|
| Specifications | |
| Types of Relay | 功率繼電器 |
| Product Name | 16 點 PHOENIX CONTACT 繼電器模組 |
| Correspondence with PLC/CNC Brands | 通用款 |
| Subtable Purpose | 控制設備輸出用 |
| Polarity | NPN / PNP |
| Numbers of Channel | 16 |
| Dimensions | L155.5 X W121.0 X H62.0 mm |
| Brands of Relay | PHOENIX CONTACT |
| Item No. of Relay | REL-MR- 24DC/21HC |
| Contact Type | 1c (SPDT) |
| Poles | 1 pole |
| Functions of Relay | 高容量型 |
| Brands of Terminal Block | WAGO |
| Types of Terminal Block | 5.0mm 直插彈片式端子台 |
| Applicable Wire Diameter | 12~28 AWG |
| Types of Connector | 無連接器, 只有端子台 |
| Contact Protection | N 極性快速恢復二極體 (LN) |
| LED Power Indicator | Yes (Green) |
| LED Action Indicator | Yes (Red) |
| Types of Bottom Shield | 鎖鋁軌 |
| Specifications | |
| Performance | |
| Rated Voltage | DC 24V |
| Rated Current (mA) | 17 mA |
| Total Current (mA) | 272 mA |
| Coil Resistance (Ω) | 1440 Ω ±10 % ( at 20 °C) |
| Power Consumption (VA, W) | 約 6.56 W |
| Resistive Load | DC - 30V : 16A |
| Max. Contact Current | 16A |
| Average Response Time | 7 ms |
| Average Release Time | 3 ms |
| Mechanical Operating Life | 3x 10⁷開關次數 |
| Withstand Voltage (Between Coil and Contact) | AC 5,000V 50 Hz 1 分鐘 |
| Max. Switching Voltage | 250 V AC/DC |
| Min. Switching Voltage | 12 V (10 mA 時) |
| Max. Operating Current | 50 A (20 ms) |
| Min. Operating Current | 10 mA (12 V 時) |
| Material Information | |
| Material of Contacts | AgNi |
| Weight (g) | 約 502.2g |
| Commerical Data | |
| H.S. Code | 8536.41.00.00-8 |
| Place of Origin | Taiwan (R.O.C) |
| Ambient Operating Condition | |
| Ambient Operating Temperature | -40 °C ... 85 °C |
| Installation | |
| Relays | 拔插式 |
| Modules | DIN-35mm 標準導軌式安裝 |
| Plug-in | 附繼電器固定鈎 |
| Certifications | |
| International Certification | CE、FCC、RoHS |
